- Description

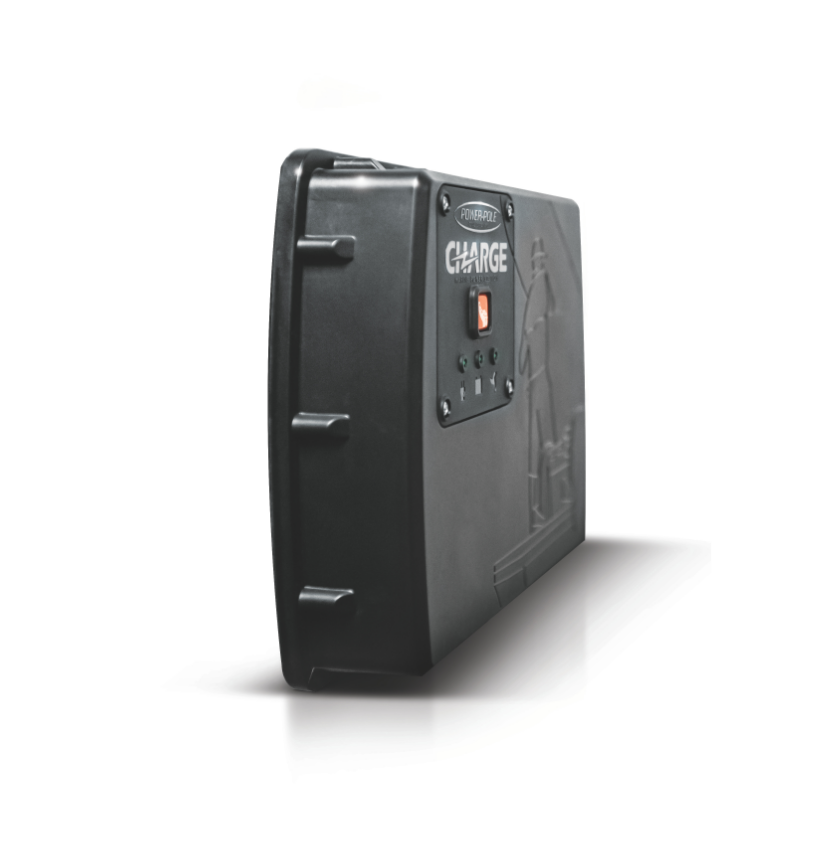

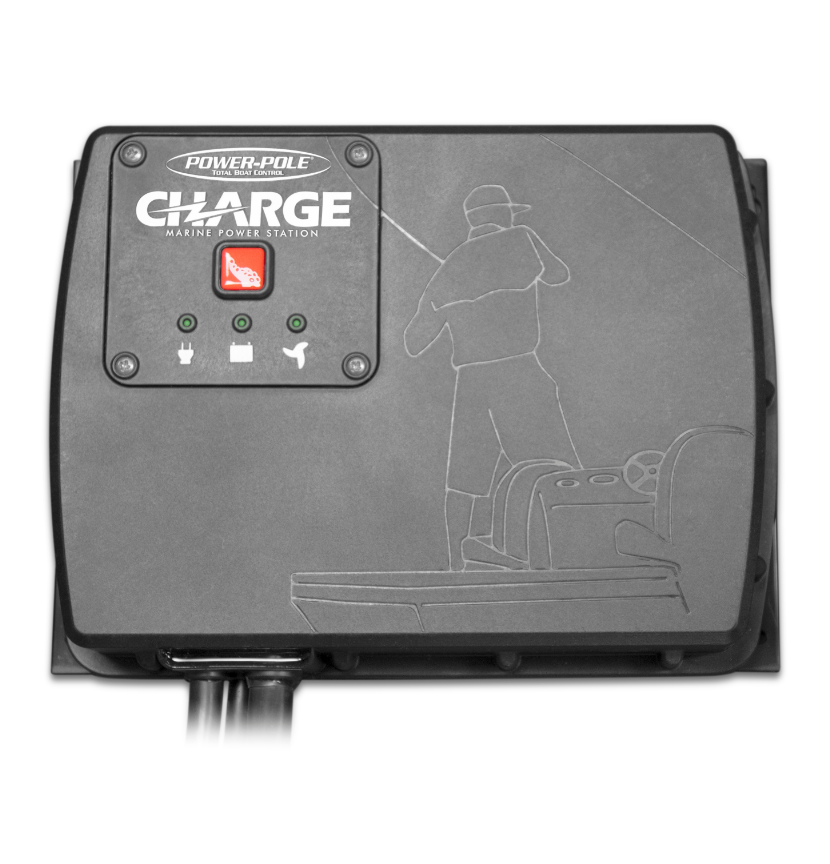

The CHARGE Marine Power Manager is an advanced onboard smart charger that does the work of four devices. It’s a traditional battery charger, a bi-directional power manager, a charge-on-the-run, and an emergency start system – all in one compact unit. The CHARGE is compatible with various battery configurations and battery types, including high-performance lithium batteries. CHARGE prioritizes your charging needs in real-time using the C-Monster app or a compatible multi-function display. CHARGE automatically devotes more power to the batteries that need it the most for maximum efficiency, giving you more time doing what you love out on the water.
Features:
- Works with all battery types -- high performance lithium, lead acid, AGM, GEL and TTPL
- Re-balances and maintains your battery health
- Delivers up to 500 watts of power
- Out-of-the-box installation is simple and easy
- Real-time voltage and status updates via the C-Monster app or comptatible MFD
- Integrate with select displays from Lowrance, Simrad and GARMIN
- C-Monster app available for iOS and Android devices
- IP-65 rated waterproof case
A Smarter Power Management System
This 500-WATT power station provides a maximum of 40amps for charging the cranking battery and up to 25amps for the trolling batteries. CHARGE is compatible with various battery types – lithium, lead acid, AGM, GEL, and TPPL. Utilizing the C-Monster app or a compatible MFD, you can actively monitor your battery status and choose to prioritize recharging your trolling or cranking batteries. The CHARGE system automatically sustains minimum power levels according to your personalized settings.

Compact Design
The CHARGE unit is 10.62x7.95x2.78 inches in size and weighs less than 9lbs, ensuring easy integration into your boat. As a versatile 4-in-1 unit, it will replace your existing chargers and jump-start systems, freeing up valuable space and weight on your vessel.
Easy to Install
Installing the CHARGE is a quick and easy process requiring only four screws. The straightforward wiring instructions leverage your boat’s existing shore power and alternator system, eliminating the need for intricate splicing or advanced electrical expertise. Simply refer to the CHARGE installation manual to set up your boat’s battery bank.
Built-In Safety Features
Engineered for secure operation in challenging conditions, the CHARGE features an integrated heatsink cooling system and temperature sensors embedded in the wiring sheath for ultimate protection. Additionally, the CHARGE casing adheres to IP65 waterproof standards, ensuring protection against potential water intrusions into the unit’s internal components.


Wiring Sheath
Compatible MFD's
(Requires Power-Pole Gateway)
- NSS Evo3
- NSO Evo3
- NSO Evo2
- GO 5 XSE
- GO 7 XSR
- GO 9 XSE
- GO 12 XSE
- IDS
- 2020+ Models
- HDS Live
- HDS Carbon
- Elite Ti2
- Echomap Ultra
- Echomap UHD/UHD2
- GPSMAP 8600
- GPSMap x2
- GPSMap x3
- 903
- 703
- 502



Specifications:
| Two button Key Fob | Included |
|---|---|
| Total weight | 8.75 lbs |
| Power supply | Up to 500 watts of power |
| Dimensions |
|
| Output |
|
| IP Rating | IP65 |
| A/C Input | 120v 60Hz |
| Soft Close Cylinder | No |
| Drive off protection | No |
