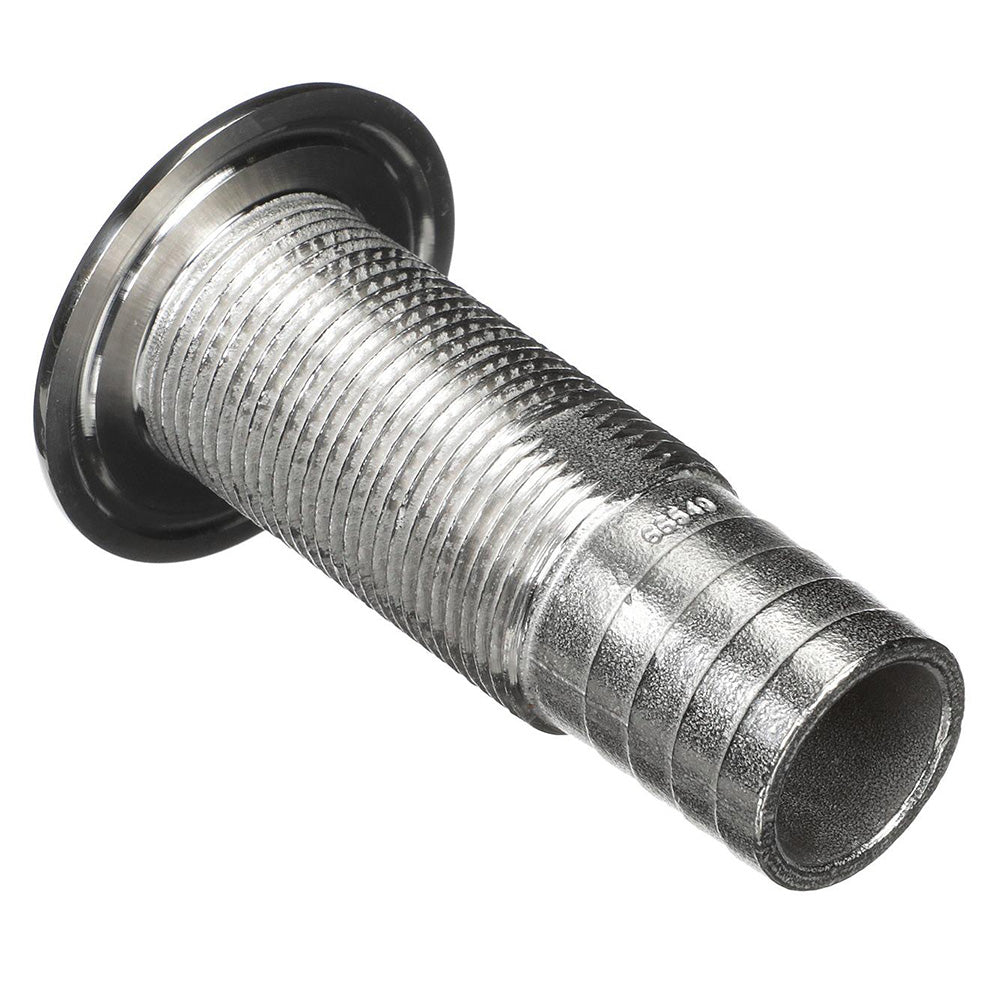

Attwood Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/8" Inner Diameter [66549-3]

Regular price $28.99 USD
Regular price $39.99 USD Sale price $28.99 USD
Sale Sold out
  • Description

Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/8" Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

  • Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
  • All visible areas are polished to a mirror finish, then passivate each part for additional protection
  • Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

  • Each Thru-Hull is available with a new silicone gasket
  • A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
  • All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
  • The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

  • Standard Thread model has a full-length thread for thick hulls and easy tightening

Specifications:

  • Hose size: (inch) 1-1/8" inner diameter
  • Flange Diameter: (inch) 2-1/4"
  • Thread O.D. (outside diameter): (inch) 1-3/8"
  • Thread Length: (inch) 2-3/8"
  • Barb Length: (inch) 1-1/4"
  • Total Length: (inch) 3-7/8"
  • Install Hole Saw Size: (inch) 1-1/4"
  • Thread NPSM: (inch) 1"
  • Max Hull Thickness: (inch) 1-3/4"

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Specifications:

  • Hose Size: 1-1/8"
  • Material: Stainless Steel
  • Box Dimensions: 2"H x 4"W x 7"L WT: 0.85 lbs
  • UPC: 022697665492

Quick Guide (pdf)
